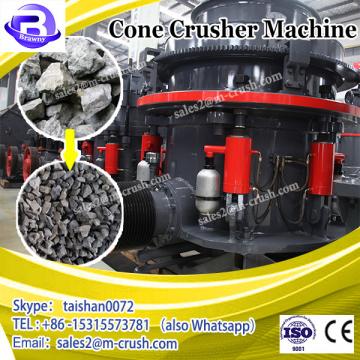

Top quality crushing equipment brand new cone crusher price from China

Product Description

Symons Cone crusher is also a kind of spring safety type cone crusher, with advantages if high production capacity,fine granularity,good product shape,light weight,easy maintenance ,easy to operate etc.It is superior to spring cone crusher in terms of yield,particle granularity uniformity,fineness of products,spare parts lifetime,running rates and costs of production and maintenance.

>>Cone crusher working principle:

When the cone crusher is working, the engine rotates around a fixed point driven by the belt wheel or the coupling. The transmission shaft and the conical part of the cone crusher swing under the force from the eccentric bushing, which makes the crushing wall close to the pierced mortar wall at intervals, Then ,the ores will be impacted, squeezed and bent constantly in the crushing chamber. At last, the whole ore crushing process is finished.

Crusher Features

1,Production in accordance with U.S. technical standards,

2,High capacity,is the corresponding specifications of the cone crusher 1.5-2 times,

3,Big crushing force can provide large production capacity,

4,Particle granularity uniformity,high prodcution rate,liner consumption greatly reduced,

5,Good sealing,reduce the wear of transmission parts and consumption of lubricating oil,

6,Flexible adjustment ,convenient operation,

7,WIth two kinds if crushing chamber,fine adaptability,

8,It adapt hydraulic lock,hydraulic adjustment ,hydraulic cleaning,high degree of automatization,

Technical Parameter

Standard Type Main Parameters

Model	Dia	Cavity	Feed Opening Size(mm)		Output Size (mm)	Capacity (t/h)	Power (KW)	Weight (t)	Overall Dimension L*W*H (mm)
B 3’	900	Fine	83	102	9-22	45-91	75	15	2821*1880*2164
		Coarse	159	175	13-38	59-163
B 41/4’	1295	Fine	109	137	13-31	109-181	160	27	2800*2342*2668
		Medium	188	210	16-38	132-253
		Coarse	215	241	19-51	172-349
B 51/2’	1676	Fine	188	209	16-38	181-327	220	55	3911*2870*3771
		Medium	213	241	22-51	258-417
		Coarse	241	268	25-64	299-635
B 7’	2134	Fine	253	278	19-38	381-726	315	110	4613*3251*4732
		Medium	303	334	25-51	608-998
		Coarse	334	369	31-64	789-1270

Short Head Main Parameters

Model	Dia	Cavity	Feed Opening Size(mm)		Output size (mm)	Capacity (t/h)	Power (KW)	Weight (t)	Overall Dimension L*W*(mm)
D3’	914	Fine	13	41	3-13	27-90	75	15	2821*1880*2410
		Coarse	33	60	3-16	27-100
D4 1/4'	1295	Fine	29	64	3-16	36-163	160	27	2800*2342*2668
		Medium	54	89	6-16	82-163
		Coarse	70	105	10-25	109-227
D5 1/2'	1676	Fine	35	70	5-13	90-209	220	55	3911*2870*3771
		Medium	54	89	6-19	136-281
		Coarse	98	133	10-25	190-336
D7'	2134	Fine	51	105	5-16	190-408	315	110	4130*3251*4454
		Medium	95	133	10-19	354-508
		Coarse	127	178	13-25	454-599

Customer Spot

Accessories

Our Factory

Factory Warehouse

Workshop Team

Linyi Wante Machinery Co., Ltd was established in 1996, located in Linyi City North District National Grade Economic Development Zone. It is a high-tech enterprise collection of crusher machines, wearing-resisting materials R&D, manufacture, sales and service. For ten years, taking our enterprise spirits of “Good faith, being pragmatic, innovation, development”, through our unremitting efforts, rapidly become an important crusher and wear resistant material manufacture and export base.

Our primary products include jaw crushers, cone crushers, impact crushers, hammer crushers, sand washing machines(fine crushers, feeders, 2PG rolling crushers, mobile crusher plants, vibrating screens, LMC plusedust collectors, belt conveyors)and their related spare parts. They can be widely used in mining, building material, metallurgical, energy industries, and roads and bridges.

Our Services

Visit factory Project design Engineer available to install machineFAQ Q: Why we believe in Linyi wante company?

1. 22 years experience for all kinds of stone crusher .
2. Wante is the Top quality crushing equipment brand new cone crusher price from China professional supplier of solution, equipments and service for crushing and grinding industry.
3. All products achieved ISO9001:2000 quality management certificate .

Q: what will you do if the machine is broken down?

A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when
the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: Delivery time

A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.

Q: Payment terms

A: Accepted Payment Type: T/T, L/C, Western Union, Cash

Pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: If have after-sale service
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems,

We send installation engineer team to the scene to guide the equipment

installation, commissioning and training your operating personnel.

In order to recommend the suitable models and supply more complete quotation for you, Send your Requiry Details to jessica whats app&imo:+86 17853995662

include:

♥ What's the raw materials you want to process(such as granite, basalt, river stone)?

♥ What is capacity you want tons per hour? such as100TPH, 150TPH, 200TPH.

♥What is feed size and output size? such as crush 800mm stone into 0-10,10-20mm.

Cone Crusher Machine is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.; Top quality crushing equipment brand new cone crusher price from China is applicable to the mobile crushing processes in highway, railway, metallurgy, ore mine, construction and other industries.
YHGGUH
Cone Crusher Machine can be used in Pebble, rock (the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, and slags. Top quality crushing equipment brand new cone crusher price from China can be used in Building aggregate, highway, asphalt concrete and cement aggregate production. Cone Crusher Machine As well as stone reshaping production in water conservancy and hydropower engineering field, highway, railway, bridge, passenger line, airport runway, municipal engineering and high-rise buildings finely process of mining areas.Top quality crushing equipment brand new cone crusher price from China
YHGUJ
