Product Description

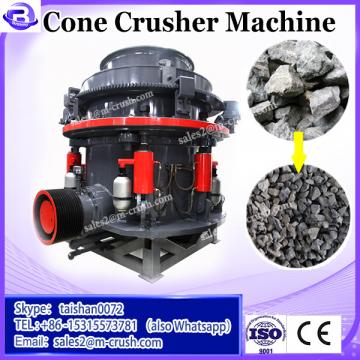

PYZ1750 Spring Cone Stone Crusher Machine For Basalt:
Feeding Granularity: 65-300mm
Production Capacity: 12-1000t/h
Handling Materials of the cone stone crusher: Limestone, granite, cobble, dolomite, bluestone, iron ore, rock, all kinds of stone, construction waste, glass, cement clinker, artificial sand, dry mortar, power plant desulfurization.
cone stone crushers have the features of big crushing ratio, high efficiency, low energy consumption, even product granularity convenient adjustment and low operation cost, so that it is suitable for the fine crushing and super fine crushing of hard rocks, ores, slag and refractory in mine, metallurgy, construction, road paving, chemistry and silicate industry
Working Principle of Spring Cone Stone Crusher Machine :
Spring Cone Stone Crusher crushes materials by the working surface between the movable cone and fixed cone. So it is more advanced and efficiency than Jaw Crusher. The movable cone is supported by spherical bearing and fixed on a hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing.
When non-crushable materials go through the crushing chamber or the machine has over load due to some reasons, the spring protective system will realize protection and increase the discharging mouth, so that the non-crushable materials can be discharged from the crushing chamber. If the non-crushable materials get stuck in the discharging mouth, the clearance system will be started to continue to increase the discharging mouth to discharge the non-crushable materials. Under the effect of the spring, the discharging mouth will automatically reset and the machine will go back to normal work. Cone crusher is divided into coarse crushing cone crusher, medium crushing cone crusher and fine crushing cone crusher and customers can choose different machines according to their specific needs.
Cone stone crusher features:
. Reasonable structure, advanced crushing principle and technical parameters, reliable operation and low running costs.
2. Big crushing force, high production capacity and high yield.
3. Reliable hydraulic system can provide safe and effective overload protection.
4. Multiple crushing chambers can adapt to wide ranges of the product granularity.
5. This machine adopts hydraulic adjustment, thus greatly improving the automatic degree.
6. The changing of crushing wall is convenient.
Cone stone crusher main models and technical parameters:
Specification |
Model |
Diameter |
Max.feeding |
Width of |
Processing |
Motor |
Total |
Dimensions |
Φ600 |
PYB600 |
600 |
65 |
12-25 |
40 |
8P 30 |
5 |
2234×1370×1675 |
PYD600 |
35 |
3-13 |
12-23 |
5.5 |
2234×1370×1675 |
|||
Φ900 |
PYB900 |
900 |
115 |
15-50 |
50-90 |
8P 55 |
11.2 |
2692×1640×2350 |
PYZ900 |
60 |
5-20 |
20-65 |
11.2 |
2692×1640×2350 |
|||
PYD900 |
50 |
3-13 |
15-50 |
11.3 |
2692×1640×2350 |
|||
Φ1200 |
PYB1200 |
1200 |
145 |
20-50 |
110-168 |
8P 110 |
24.7 |
2790×1878×2844 |
PYZ1200 |
100 |
8-25 |
42-135 |
25 |
2790×1878×2844 |
|||
PYD1200 |
50 |
3-15 |
18-105 |
25.3 |
2790×1878×2844 |
|||
Φ1750 |
PYB1750 |
1750 |
215 |
25-50 |
180-360 |
8P 160 |
50.3 |
3910×2894×3809 |
PYZ1750 |
185 |
10-30 |
80-210 |
50.3 |
3910×2894×3809 |
|||
PYD1750 |
85 |
5-13 |
60-180 |
50.2 |
3910×2894×3809 |
|||
Φ2200 |
PYB2200 |
2200 |
300 |
30-60 |
420-700 |
8P 280-260 |
80 |
4622×3302×4470 |
PYZ2200 |
230 |
10-30 |
130-410 |
80 |
4622×3302×4470 |
|||
PYD2200 |
100 |
5-15 |
80-200 |
81.4 |
4622×3302×4470 |
Cone stone crusher installation site:
Spring cone type stone crusher machine from stock :
PYB900 spring cone type stone crusher export:
If you have any cone stone crusher machine price inquiry ,please :
Contact:
Sara
Mobile phone : (whatsapp number): 0086137 8347 1727
Skype: sarapang6
PYZ1750 Spring Cone Stone Crusher Machine For Basalt sarapang6
Company Website: www.superballmill.com
Email: sales006*zzhxmachine.com
Cone Crusher Machine is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.; PYZ1750 Spring Cone Stone Crusher Machine For Basalt is applicable to the mobile crushing processes in highway, railway, metallurgy, ore mine, construction and other industries.
YHGGUH
Cone Crusher Machine can be used in Pebble, rock (the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, and slags. PYZ1750 Spring Cone Stone Crusher Machine For Basalt can be used in Building aggregate, highway, asphalt concrete and cement aggregate production. Cone Crusher Machine As well as stone reshaping production in water conservancy and hydropower engineering field, highway, railway, bridge, passenger line, airport runway, municipal engineering and high-rise buildings finely process of mining areas.PYZ1750 Spring Cone Stone Crusher Machine For Basalt
