Home>Products>Cone Crusher Machine>Gold Mining Equipment Cone Crusher for Hard Material

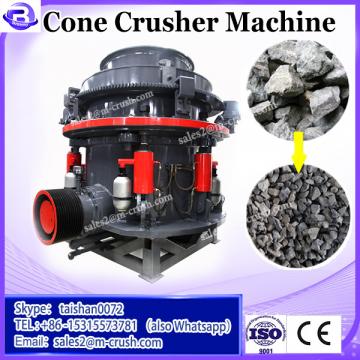

Gold Mining Equipment Cone Crusher for Hard Material
- Cone Crusher Machine
Cone Crusher Machine
- China
- ISO 9001:2008 ,CE
- One set Gold Mining Equipment Cone Crusher for Hard Material
- [email protected]
- 3100*2900*4557mm
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 60
-
Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
I. Brief Introduction:
Single cylinder hydraulic cone crushers are developed by introduction of foreign technology and widely applied in mining, metallurgy and building material industries. They can crush ores and rocks with various hardness even the most hardness. CPY Series have simple structure, excellent productivity, low energy consumption and even product size.
II. Application:
1.widely applied in mining, road&railway, concrete, chemical and building material industries.
2.Ores and rocks with various hardness
3.Concrete basis and steel structure basis
4.Stationary, half-mobile and mobile applications
III. Main Advantages:
1). high reliability and continuous operation.
2). many chambers choices and chambers are convertible easily.
3). fast setting adjustment and high tramp release.
4). measurement equipment of bin level can excess material automatically.
5). no packing liner,rapid,replacement and reduced downtime.
6). transmission gear gives stronger power and lighter noise.
7). blowing dust System gives Gold Mining Equipment Cone Crusher for Hard Material lives of all bronze bushing‘s friction pair.
8). cooling mode of oil lubrication system flexible and extensive district use.
IV. Structure:
V. Specifications:
CPYQ Single Cylinder Hydraulic Cone Crusher | |||||||
Model | Diameter Of Crushing Cone (mm) |
Feed Opening Size (mm) |
Max Feed Size (mm) |
Discharging Size (mm) |
Capacity (t/h) |
Power (kw) |
Overall Dimensions (LxWxH)(mm) |
CPYQ-0908 | 900 | 80 | 65 | 4-12 | 27-48 | 90-132 | 1955x1876x2846 |
CPYQ-0912 | 900 | 120 | 100 | 8-15 | 38-55 | 90-132 | 1955x1876x2846 |
CPYQ-0918 | 900 | 180 | 150 | 10-25 | 42-80 | 90-132 | 1955x1876x2846 |
CPYQ-0925 | 900 | 250 | 210 | 20-40 | 65-180 | 90-132 | 1955x1876x2846 |
CPYQ-1212 | 1200 | 120 | 100 | 6-15 | 120-185 | 160-220 | 2335x2732x3253 |
CPYQ-1216 | 1200 | 160 | 135 | 10-20 | 160-220 | 160-220 | 2335x2732x3253 |
CPYQ-1224 | 1200 | 240 | 205 | 15-25 | 200-250 | 160-220 | 2335x2732x3253 |
CPYQ-1232 | 1200 | 320 | 270 | 25-40 | 260-335 | 160-220 | 2335x2732x3253 |
CPYQ-1515 | 1500 | 150 | 125 | 10-20 | 230-370 | 315-450 | 2952x3080x4607 |
CPYQ-1525 | 1500 | 250 | 210 | 15-25 | 350-465 | 315-450 | 3100x2900x4557 |
CPYQ-1533 | 1500 | 330 | 280 | 25-40 | 470-650 | 315-450 | 3100x9000x4557 |
CPYQ-1541 | 1500 | 410 | 350 | 40-55 | 650-780 | 315-450 | 3100x2900x4607 |
CPYQ-1818 | 1800 | 180 | 150 | 10-25 | 390-610 | 500-600 | 3452x3580x5007 |
CPYQ-1828 | 1800 | 280 | 235 | 19-38 | 450-800 | 500-600 | 3452x3580x5007 |
CPYQ-1839 | 1800 | 390 | 330 | 32-55 | 780-1250 | 500-600 | 3452x3580x5007 |
CPYQ-1847 | 1800 | 470 | 400 | 38-64 | 820-1460 | 500-600 | 3452x3580x5007 |
VI. Products and Factory Display


Cone Crusher Machine is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.; Gold Mining Equipment Cone Crusher for Hard Material is applicable to the mobile crushing processes in highway, railway, metallurgy, ore mine, construction and other industries.
YHGGUH
Cone Crusher Machine can be used in Pebble, rock (the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, and slags. Gold Mining Equipment Cone Crusher for Hard Material can be used in Building aggregate, highway, asphalt concrete and cement aggregate production. Cone Crusher Machine As well as stone reshaping production in water conservancy and hydropower engineering field, highway, railway, bridge, passenger line, airport runway, municipal engineering and high-rise buildings finely process of mining areas.Gold Mining Equipment Cone Crusher for Hard Material
YHGUJ
