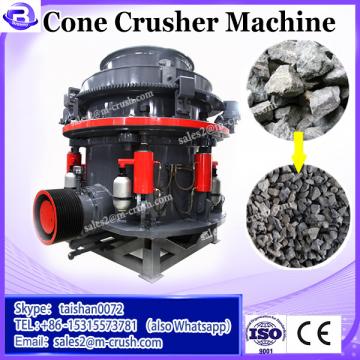

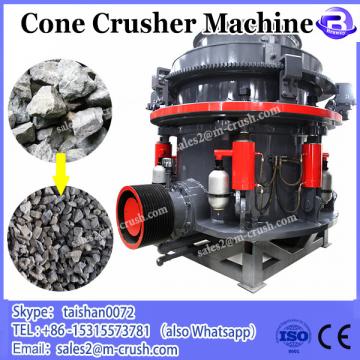

Energy-efficient and Reliable Spring Cone Crusher 15% Off
- Cone Crusher Machine
Cone Crusher Machine
- China
- ISO9001:2008
- One set Energy-efficient and Reliable Spring Cone Crusher 15% Off
- [email protected]
- 2692x1640x2350
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 129
-
Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
Cone crushers are main equipment for medium/fine crushing of ores and rocks with different hardness in mining, forging, construction, chemical industry and power stations. They have features of advanced structure, high output rate, easy adjustment and their products have uniform grain distribution.
According to the structure, cone crusher can be divided into spring cone crusher, hydraulic single-cylinder cone crusher, multi-cylinder hydraulic cone crusher.
Typical materials:
river gravel, granite, basalt, iron ore, limestone, quartz, diabase, gold ore, copper ore, etc.
Features:
- High reduction ratio and high productivity
- Less wear parts, low maintenance
- Laminated Crushing, forming excellent grain shapes
- Reliable lubrication with Dilute oil, extending working life
Working Principle:
|
When a spring cone crusher works, its motor drives the eccentric bushing via spring coupling, transmission shaft and a couple of cone gear wheels. The crushing cone axis is forced to swing by the eccentric bearing bushing, which drives the mantle periodically moving close and far to the bowl liner. During the moving process, the raw materials are pressed, impacted and finally crushed in the crushing chamber. |
|
Technical Data:
| Model | Diameter breaking | Max feed size (mm) | discharge opening | Capacity | Power | Speed | Weight | Overall dimension |
| (mm) | (mm) | (t/h) | (kw) | (r/min) | (t) | L×W×H(mm) | ||
| PYB600 | Φ600 | 65 | 12-15 | 40 | 30 | 356 | 5 | 2234×1370×1675 |
| PYD600 | Φ600 | 35 | 3-13 | 12-23 | 30 | 356 | 5.1 | 2234×1370×1675 |
| PYB900 | Φ900 | 115 | 15-50 | 50-90 | 55 | 333 | 11.2 | 2692×1640×2350 |
| PYZ900 | Φ900 | 60 | 5-20 | 20-65 | 55 | 333 | 11.2 | 2692×1640×2350 |
| PYD900 | Φ900 | 50 | 3-13 | 15-50 | 55 | 333 | 11.3 | 2692×1640×2350 |
| PYB1200 | Φ900 | 145 | 20-50 | 110-168 | 110 | 300 | 24.7 | 2790×1878×2844 |
| PYZ1200 | Φ900 | 100 | 8-25 | 42-135 | 110 | 300 | 25 | 2790×1878×2844 |
| PYD1200 | Φ1200 | 50 | 3-15 | 18-105 | 110 | 300 | 25.3 | 2790×1878×2844 |
| PYB1750 | Φ1750 | 215 | 25-50 | 280-480 | 160 | 245 | 50.3 | 3910×2894×3809 |
| PYZ1750 | Φ1750 | 185 | 10-30 | 115-320 | 160 | 245 | 50.3 | 3910×2894×3809 |
| PYD1750 | Φ1750 | 85 | 5-13 | 75-230 | 160 | 245 | 50.2 | 3910×2894×3809 |
| PYB2200 | Φ2200 | 300 | 30-60 | 59-1000 | 280/260 | 220 | 80 | 4622×3302×4470 |
| PYZ2200 | Φ2200 | 230 | 10-30 | 200-580 | 280/260 | 220 | 80 | 4622×3302×4470 |
| PYD2200 | Φ2200 | 110 | 5-15 | 120-340 | 280/260 | 220 | 81.4 | 4622×3302×4470 |
Cone Crusher Machine is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.; Energy-efficient and Reliable Spring Cone Crusher 15% Off is applicable to the mobile crushing processes in highway, railway, metallurgy, ore mine, construction and other industries.
YHGGUH
Cone Crusher Machine can be used in Pebble, rock (the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, and slags. Energy-efficient and Reliable Spring Cone Crusher 15% Off can be used in Building aggregate, highway, asphalt concrete and cement aggregate production. Cone Crusher Machine As well as stone reshaping production in water conservancy and hydropower engineering field, highway, railway, bridge, passenger line, airport runway, municipal engineering and high-rise buildings finely process of mining areas.Energy-efficient and Reliable Spring Cone Crusher 15% Off
