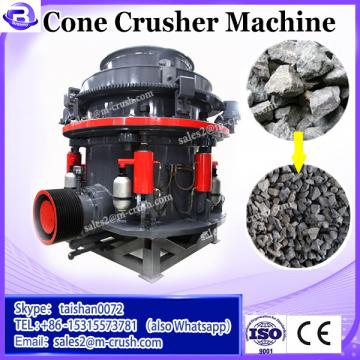

Stone Crushing Machine cone crusher

A. Features of Cone Crusher:

1. Our cone crusher has the characteristics of large breaking force, high efficiency, high crushing capacity, low operating cost and long service life. It is convenient to operate and is economical.
2. The cone crusher crushed materials are of equal size, thus reducing circulating load.
3. Cone crusher in Large and medium-sized crushers adopt hydraulic chamber-cleaning systems, which will help reduce the down time.
4. Cone crushers with different chambers are available, to meet our customers' requirements.
5. The cone crusher in Grease seal can effectively avoid the blockage of water feeding system and drainage system, as well as mixing of water and oil.
6. As the overload protection device, spring safety device allows foreign matter and iron pieces to pass through the crushing chamber without jeopardizing machines.

Components of Cone Crusher:
Cone crusher mainly consists of frame, horizontal axis, cone brake, balance wheel, eccentric sleeve, upper crushing wall (welding cone), down crushing wall (movable cone), fluid coupling, lubricating system, hydraulic system and control system.

B.Spring Cone Crusher Structure & operation principles

Cone crusher consist of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening.During operation, the motor drives the eccentric shaft shell to turn around through ahorizontal axle and a pair of bevel gear.
The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.

C.Product introduction of the cone crusher

The cone crusher is widely used in construction, road building, power station, metallurgical and chemical industry. For SANYYO compound cone crusher, we have our types ready for customer's choose depending on the input and output size requirement. CC is for standard type;

CM is for middle type; CF is for short-head type; CEF is for fine short-head type. All the four types are designed for secondary or tertiary crushing purposes both in stationary and portable applications for highly abrasive materials. SANYYO complex cone crusher equipped with perfect discharging adjustment system, excellent hydraulic chamber-clearning system. Each model is versatile and easy operating.

ng assembly will work reliably and prolong its service life.Perfect operating and inspecting system can ensure project body in all aspects.

C.Technical Specification of Cone Crusher

Note: This specification is just reference, any changes are subject to the Spring Cone Crusher products

Cone Crusher Machine is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.; Stone Crushing Machine cone crusher is applicable to the mobile crushing processes in highway, railway, metallurgy, ore mine, construction and other industries.
YHGGUH
Cone Crusher Machine can be used in Pebble, rock (the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, and slags. Stone Crushing Machine cone crusher can be used in Building aggregate, highway, asphalt concrete and cement aggregate production. Cone Crusher Machine As well as stone reshaping production in water conservancy and hydropower engineering field, highway, railway, bridge, passenger line, airport runway, municipal engineering and high-rise buildings finely process of mining areas.Stone Crushing Machine cone crusher
