Product Description
stone crusher plant with low crushing noise
1. stone crusher plant with low crushing noise usage and application
Cone crusher widely used in the fields of metallurgy, construction, hydroelectric project, transport, chemical industries and building materials for crushing all sorts of hard and above medium hard ores and rocks.
2. stone crusher plant with low crushing noise features
1.Hydraulic system is reliable, provide safe and effective overload protection ;
2.Use hydraulic adjustmeng and hydraulic clean cavity setting, much increase automation ;
3.The lubrication unit is interlock with the main motor for additional safety as a standard equipment ;
4.The spring safety system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the Cone Crusher ;
5.Cone crusher has high design and manufacture quality long service life convenient repairing , lower cost . All of the maintenance work can be done easily on the top of the machine .
3. stone crusher plant with low crushing noise principle
Cone crusher consist of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening.During operation, the motor drives the eccentric shaft shell to turn around through ahorizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time.
4.principal technical data of stone crusher plant with low crushing noise
Model |
Diameter of Cone(mm) |
Max Feed Size(mm) |
Output Range(mm) |
Capacity(t/h) |
Power(Kw) |
Weight(t/h) |
Dimension(mm) |
PYB-900 |
900 |
115 |
15-50 |
50-110 |
55 |
10.8 |
2692*1640*2350 |
PYZ-900 |
900 |
60 |
5-20 |
20-65 |
55 |
10.8 |
2692*1640*2350 |
PYD-900 |
900 |
40 |
3-13 |
15-50 |
55 |
10.9 |
2692*1640*2350 |
PYB-1200 |
1200 |
145 |
20-50 |
110-200 |
110 |
25 |
2790*1878*2844 |
PYZ-1200 |
1200 |
100 |
8-26 |
50-150 |
110 |
25 |
2790*1878*2844 |
PYD-1200 |
1200 |
50 |
3-15 |
18-105 |
110 |
25.7 |
2790*1878*2844 |
PYB-1750 |
1750 |
215 |
25-60 |
280-510 |
115-160 |
50.3 |
3910*2894*3809 |
PYZ-1750 |
1750 |
185 |
10-30 |
115-320 |
115-160 |
50.3 |
3910*2894*3809 |
PYD-1750 |
1750 |
85 |
5-15 |
75-230 |
115-160 |
50.3 |
3910*2894*3809 |
PYB-2200 |
2200 |
300 |
30-60 |
590-1000 |
260-280 |
84 |
4622*3302*4470 |
PYZ-2200 |
2200 |
235 |
10-30 |
200-580 |
260-280 |
85 |
4622*3302*4470 |
PYD-2200 |
2200 |
110 |
5-60 |
120-370 |
260-280 |
85 |
4622*3302*4470 |

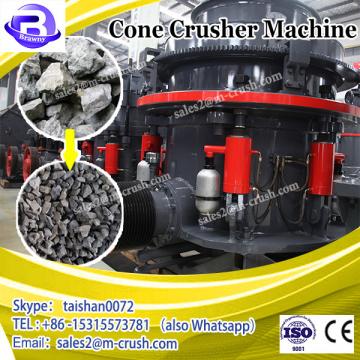

5.picture show of density of stone crusher plant with low crushing noise

we also have other products you may need
6.our company
Dayong vibration Equipment CO.LTD manufactures high quality DY series vibration equipment,crusher,conveyer,etc.which is also the first domestic production of vibrating screen equipment manufacturers. Our company is a new-type shareholding system company which combines several decades of manufacturing experience and modern technology together.
The above is only part of the information, if we want more information please contact us.
Tel:86-373-3669005 Cell:86-15090451649 Fax:86-373-3669006
Skype:xinxiangdayong01 high efficient mining chemical industries stone hammer crushing machine1355135184
Welcome to visit our factory and look forward your cooperation.
Cone Crusher Machine is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.; high efficient mining chemical industries stone hammer crushing machine is applicable to the mobile crushing processes in highway, railway, metallurgy, ore mine, construction and other industries.
YHGGUH
Cone Crusher Machine can be used in Pebble, rock (the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, and slags. high efficient mining chemical industries stone hammer crushing machine can be used in Building aggregate, highway, asphalt concrete and cement aggregate production. Cone Crusher Machine As well as stone reshaping production in water conservancy and hydropower engineering field, highway, railway, bridge, passenger line, airport runway, municipal engineering and high-rise buildings finely process of mining areas.high efficient mining chemical industries stone hammer crushing machine
YHGUJ
