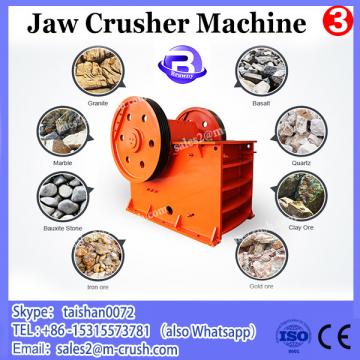

High quality mini stone crusher machine
- Jaw Crusher Machine
Jaw Crusher Machine
- China
- ce,iso
- One set High quality mini stone crusher machine
- INFO@LDFOODMACHINE.COM
- 720*660*850
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 56
-
Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
Product Description
Application of High quality mini stone crusher machine
PE series stone jaw crushers are designed for the primary stage of crushing quarry rock of sort. The PE jaw crusher are the ideal machine to crush hard stones.
PE series stone jaw crushers are widely used in mining,melting,building materials,roads railways water conservancy,chemical industry and many other sections to crush all kinds of materials of which the compressive strength is less than 320 Mpa.
We designed our stone jaw crushers by several decades production experiences and have been absorbing the most advanced technology home and abroad.
Advantage of High quality mini stone crusher machine
1.Advanced working principle,
2.High capacity,high output,and high efficiency,
3.Large crushing ratio,
4.Adjustable for easy wearing parts,
5.Uniform product size,
6.Durable and reliable working performance,
7.Energy-saving designed and less costly operating,
8.Wide range of optional choices,
9.Simple structure and easy operation,
10.High quality and competitive prices.
Operating principle
PE stone jaw crushers uses motor as its power. Through the motor's wheels of stone jaw crusher, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore,the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
| Main technical parameters of jaw crusher | ||||||||
| type | size of feeding throat(mm) | max feed-in size | adjusting range of discharge gate(mm) | capacity | Rotary speed of eccentric shaft | motor power | overall dimension | weight |
| (mm) | (t/h) | (r/min) | (kw) | L*W*H(mm) | (t) | |||
| PE-150×250 | 150×250 | 125 | 10-40 | 1--3 | 250 | 5.5 | 720×660×850 | 0.8 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2--6 | 260 | 7.5 | 910×750×990 | 1.2 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3--10 | 260 | 11 | 1000×870×990 | 1.5 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5--20 | 300 | 15 | 1300×1090×1270 | 2.8 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 1730×1730×1630 | 7 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 1980×2080×1870 | 12 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 2070×2000×1920 | 15.8 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 2190×2206×2300 | 17 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 110 | 2660×2430×2800 | 29 |
| PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 110 | 2710×2430×2800 | 29.8 |
| PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 110 | 2740×2430×2800 | 30.7 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 2810×2430×2800 | 31.5 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 110 | 2870×2420×2940 | 33 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 3380×2870×3330 | 52 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 3480×2876×3330 | 55 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 160 | 4200×3300×3500 | 100.9 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 280 | 5160×3660×4248 | 122 |
| PE-1800×2100 | 1800×2100 | 1500 | 300-400 | 600-1200 | 160 | 400 | 6210×4013×4716 | 150.6 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 15 | 1200×1530×1060 | 3.8 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 30 | 1380×1750×1540 | 5.5 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 1560×1950×1390 | 7 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 2140×1660×1500 | 9.7 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 55 | 2720×1950×1600 | 15.6 |
Jaw Crusher Machine is fit for dry and wet sieving, classification of powdery, granular and filamentary materials and dehydration of materials. If fine sieving is required High quality mini stone crusher machine can be satisfied by adopting high-efficiency screen mesh-cleaning device to improve the sieving. For wet sieving High quality mini stone crusher machine is especially fit for separation of sludge (waste water) and preliminary compression of mixed matter of solid and liquid materials.
hhhghj
Jaw Crusher Machine can do according to customers special demands. We provide our customers with high-quality Jaw Crusher Machine, advanced production technology and perfect after-sales services.High quality mini stone crusher machine Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
