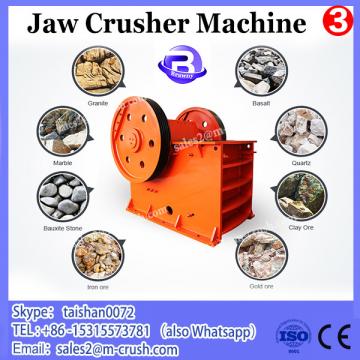

Best quality small used jaw crusher machine for sale in india
- Jaw Crusher Machine
Jaw Crusher Machine
- China
- ISO 9001: 2008
- One set Best quality small used jaw crusher machine for sale in india
- [email protected]
- 1150x1275x1240mm
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 109
- Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
From Reliable manufacturer,best quality,good service>>
Miss.Anna
Whatsapp:+8613837185504
Twitter:@Annayuxiang
Best quality small used jaw crusher machine for sale in india
Product Description
Jaw Crusher is widely used aggregate crusher to crush all kinds of materials with a compressive strength lower than 320MPa in mining,metallurgy,public road,railway,hydropower and many other industries.
Working Principle
The basic structure of a jaw crusher generally includes seven parts such as driving medium,rack,the jaw plate and side rack ,flywheel,lubrication device,adjusting device and the reset spring.
The main structure of the Jaw Crusher are composed of stander, eccentric shaft, belt pulley, flywheel, movable jaw plate, wrist plate ,adjustable gap screw, offsetting spring, fixed jaw plate. The wrist plate also has the effect of guarding.
This Jaw Crusher's crushing style is the type of driving extrusion. The motor drives the belt and belt pulley to make the moveable jaw move through the eccentric shaft. When movable jaw is rising ,the included angle between the wrist plate and movable jaw becomes bigger to drive the movable plate to be close to the movable plate. At the same time the material is squeezed and rubbed, rolled to achieve multiple crushing;
When movable jaw is descending, the included angle between the wrist plate and movable jaw becomes smaller. Now the crushed material is discharged from the crushing cavity, with the continuous rotation of the motor, the movable jaw crushing and discharging the material periodically to realize batch production.
Parameter list
Jaw crusher technical parameters >>
Model |
Feeder Openining size(mm) |
Max. Feeding size (mm) | Discharging Opening Size(mm) | Capacity (t/h) | Motor Power (KW) |
Weight (kg) |
Overall Size(mm) |
PE150x250 | 150x250 | 130 | 15-45 | 1-4 | 5.5 | 700 | 896x745x935 |
PE250x300 | 250x300 | 165 | 15-55 | 2-8 | 11 | 800 | 1050x987x1000 |
PE250x400 | 250x400 | 210 | 25-60 | 5-20 | 15-18.5 | 3000 | 1215x1520x1030 |
PE400x600 | 400x600 | 340 | 40-90 | 10-40 | 30 | 7200 | 1650x1588x1050 |
PE350x750 | 350x750 | 290 | 15-50 | 20-50 | 37 | 8900 | 1485x1680x1648 |
PE500x750 | 500x750 | 425 | 500-100 | 34-88 | 55 | 11320 | 1956x1918x1920 |
PE600x900 | 600x900 | 480 | 60-125 | 40-120 | 75 | 17600 | 2250x2733x2280 |
PE750x1060 | 750x1060 | 630 | 60-150 | 80-160 | 90 | 30530 | 2531x2455x2783 |
PE900x1200 | 900x1200 | 750 | 110-165 | 110-220 | 110 | 50000 | 3100x2760x3260 |
PE1200x1500 | 1200x1500 | 1020 | 115-195 | 400-800 | 160 | 100000 | 3710x3446x4075 |
PE150x750 | 150x750 | 125 | 10-40 | 5-15 | 15 | 3600 | 1310x1118x1145 |
PE250x1000 | 250x1000 | 210 | 15-60 | 10-32 | 30-37 | 7350 | 1550x1946x1380 |
PE250x1200 | 250x1200 | 210 | 15-60 | 12-38 | 37 | 8700 | 1530x1964x1380 |
PE300x1300 | 300x1300 | 250 | 25-60 | 15-65 | 65 | 11600 | 2000x2320x1730 |
PE 150x250 size :
Why us
1. Deep-chamber Crushing, High Efficiency and Energy Conservation.
The optimized deep-chamber crushing has no dead zone, so the feeding and crushing efficiency is greatly improved. It can save energy 15%-30% per machine, and the system can save energy more than 1 time.
2. Strong Bearing Capacity and High Stability
The combination of bigger heavy eccentric shaft processed by forging stock, high-manganese steel jaw plate and high-level cast steel movable jaw make the equipment has a stronger bearing capacity and higher stability.
3. Advanced Processing Technology and Long Service Life
Learn advanced manufacturing technology and make a digital analysis of every part's functioning state. It has a compact inner structure and Best quality small used jaw crusher machine for sale in india service life.
4. Centralized Lubrication System and Easy Maintenance
The uniquely designed centralized lubrication system makes it much quicker in part lubrication and less in maintenance work.
5. Simple Structure, Convenient Check and Repair
Simplify the excessive components on the basic principle of compound pendulum, making the whole equipment simple, efficient, strong in crushing capability, convenient in operation and maintenance and low in operation cost.
6. Big Regulation Range of Discharging Granularity, Multi-Functions
The spacer type discharging regulation device improves its adjustment range of discharging granularity and flexibility, so it can satisfy all kind of processing requirements of customers.
7. Low Noise and Little Dust
This equipment is accordance with the national environmental protection standard. It has low noise and can be equipped with dust removing device. The working environment conforms to the environmental protection requirements totally.
Main parts
Sharp tools make good work
|
|
|
|
Overall Bearing Support
Integrated Motor Installation |
|
The Stone jaw crusher mainly consists of main frame, movable( swing ) jaw, eccentric shaft, toggle plates etc. Toggle plate, toggle block, and toggle seat protect the jaw crusher from damage caused by uncrushable material in the crushing chamber. This construction helps to maintain a stable crushing angle. Simple & quick discharge gap adjustment, precise product grain distribution. |
|
|
Extraordinary Cavity Design Symmetrical V-shaped cavity design, high inclination-angle of the toggle, big stroke and reasonable speed, allows a bigger feeding size, higher capacity, uniform particle size and lower wearing of the plate. |
How to adjust the output size of small rock crusher/small jaw crusher?
The output size of the small rock crusher /small jaw crusher is adjustable. The following article will show you how to adjust the output size of small rock crusher /small jaw crusher.
When adjusting and arranging the discharge opening of small rock crusher /small jaw crusher, unscrew the nut of tension rod which strains the part appropriately at first, unclamp spring, unclamp wedge a bolt, unclamp the wedge one, tighten the jack bolt, it push forward the toggle seat and achieve some space, then take out the shim reaching the needs of discharging opening; if add more shim, it can reduce the opening; when the discharge opening of small rock crusher / small jaw crusher reaching the needs, unscrew the jack bolt and the toggle seat with shims will be back to the frame under the weight of movable jaw. Please note that the toggle seats should not contact with frame, then tighten the bolts and firm the framework, tighten the tension rod nut appropriately and tighten up the spring, namely finish adjustment.
Packaging & Shipping
Related Products
hammer crushers also called hammer mill,is suitable for crushing various hard and brittle materials. Weight:3.5t,0.8t Capacity:5-75t/h More details>>>
Get Quotation>>
|
|
Ball mill Yu Xiang's major product, professional technology support and all-around service can be offered to you Weight:37000KG Capacity:0.65-90T/H More details>>>
Get Quotation>>
|
|
wet pan mill
mainly used to process the gold, silver, lead, zinc, iron, molybdenum, copper, antimony. Capacity:0.8-1t Weight:5t More details>>>
Get Quotation>> |
We have below different designs
moveable,with diesel,with bracket etc. just for you!
Company information:
Best quality small used jaw crusher machine for sale in india YUXIANG HEAVY MACHINERY CO.,LTD. is an professional manufacturer of wet pan mill&mining series machines,with R&D team, excellent technical team, sales team and strong production capability, we have been devoting our self to the development and promotion of gold mining machinery and all our products have got CE certificates.
Below is our video about jaw crusher working on Best quality small used jaw crusher machine for sale in india:
model | Best quality small used jaw crusher machine for sale in india address | Description |
1200 A wet pan mill | https://www.Best quality small used jaw crusher machine for sale in india.com/watch?v=7-7GeVzX0Dk&t=269s | Gold ores --- crushed by jaw crusher---milled by gold mill--- refine the gold by mercury. |
PE250x400 jaw crusher | https://www.Best quality small used jaw crusher machine for sale in india.com/watch?v=WQJ4Czpz2-c |
Jaw crusher to crush the stones |
PE150x250 jaw crusher | https://www.Best quality small used jaw crusher machine for sale in india.com/watch?v=iY5x4dEIgIM&feature=youtu.be | This video is from my customer using. |
With generator | https://www.Best quality small used jaw crusher machine for sale in india.com/watch?v=BVKse6NqLYY | it shows the generator working with Gold mill together. |
About our company | https://www.Best quality small used jaw crusher machine for sale in india.com/watch?v=eM9_dzx3alA | the video shows our company with some gold mill which is deliveried to other customers. |
And you can add me on Best quality small used jaw crusher machine for sale in india by : Yanli on Twitter: @Annayuxiang |
Jaw Crusher Machine is fit for dry and wet sieving, classification of powdery, granular and filamentary materials and dehydration of materials. If fine sieving is required Best quality small used jaw crusher machine for sale in india can be satisfied by adopting high-efficiency screen mesh-cleaning device to improve the sieving. For wet sieving Best quality small used jaw crusher machine for sale in india is especially fit for separation of sludge (waste water) and preliminary compression of mixed matter of solid and liquid materials.
hhhghj
Jaw Crusher Machine can do according to customers special demands. We provide our customers with high-quality Jaw Crusher Machine, advanced production technology and perfect after-sales services.Best quality small used jaw crusher machine for sale in india Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
