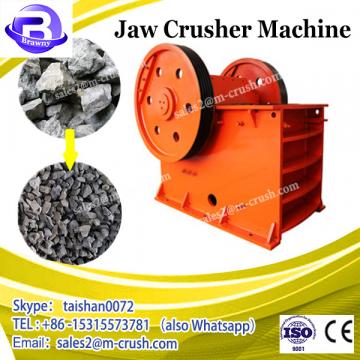

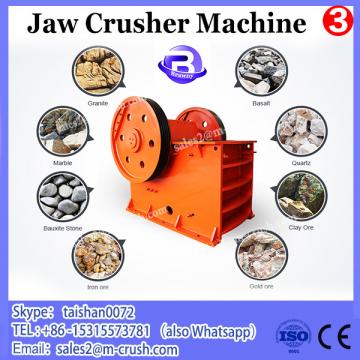

Stone Crushing Line, Stone Crusher Machinery/ Jaw Crusher made in China
- Jaw Crusher Machine
Jaw Crusher Machine
- China
- CE, ISO
- One set Stone Crushing Line, Stone Crusher Machinery/ Jaw Crusher made in China
- [email protected]
- 2660*2430*2800
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 68
- Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
We are machinery manufacturer, which specialized in this line for 23 years.
Stone Crushing Line, Stone Crusher Machinery/ Jaw Crusher made in China
1. Wanqi Jaw crusher brief introduction:
The jaw crusher is widely used in the world market nowadays and has the features of the high reduction ratio, simple structure, and easy maintenance. It has two types, which are primary crushers and secondary crushers. The compressive resistance of the materials to be crushers is up to 320Mpa.The large and medium sized crushers are the key products in our company and stand in the front of the industry in the aspects of design and production.
2. Wanqi Jaw crusher features( warranty:12 months)
1) simple structure
2) stable performance( Wanqi jaw crusher is ISO and CE approved)
3) uniform finished and high crushing ratio
4) low operation cost.
5) The product size is even.
6) broken cavity is deep and without dead zone, increased capacity and output feed
7) lubrication system is safe and reliable,
8) large of adjustment range, and increase the flexibility of the equipment;
9) low noise, less dust
10)easy maintance
3. Jaw crusher work principle:
The motor of jaw crusher transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
4.The Structure Of Stone Jaw Crusher:
Stone jaw crusher is made up of frame, eccentric shaft, grooved wheel, flywheel, moving jaw, side guard plate, toggle plate, toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate.
5.Specification:
Type |
Parameter |
Capacity (m3/h) |
Power(Kw) |
Dimmension (mm) |
Weight(t) |
PE-150×250 |
Inlet size :150×250mm; Max. feed particle size:125mm; Discharging port adjust scope:10-40mm |
1-3 |
5.5 |
720×660×850
|
0.8 |
PE-200×300 |
Inlet size:200×300mm; Max. feed particle size:180mm; Discharging port adjust scope:15-50mm |
2-6 |
7.5 |
910×750×990 |
1.2 |
PE-200×350 |
Inlet size:200×350mm; Max. feed particle size:180mm; Discharging port adjust scope:18-70mm |
3-10 |
11 |
1000×870×990
|
1.5 |
PE-250×400 |
Inlet size:250×400mm; Max. feed particle size:210mm; Discharging opening range:20-60mm |
5—20 |
15 |
1300×1090×1270
|
2.8 |
PE-400×600 |
Inlet size:400×600mm; Max. feed particle size:340mm; Discharging port adjust scope:40-100mm |
16—60 |
30 |
1730×1730×1630 |
7 |
PE-500×750 |
Inlet size:500×750mm; Max. feed particle size:425mm; Discharging port adjust scope:50-100mm |
40-110 |
55 |
1980×2080×1870
|
12 |
PE-600×750 |
Inlet size:600×750mm; Max. feed particle size:500mm; Discharging port adjust scope:50-100mm |
80-240 |
55 |
2070×2000×1920
|
15.8 |
PE-600×900 |
Inlet size:600×900mm; Max. feed particle size:500mm; Discharging port adjust scope:65-180mm |
50-180
|
75 |
2190×2206×2300
|
17 |
PE-750×1060 |
Inlet size:750×1060mm; Max. feed particle size:630mm; Discharging port adjust scope:80-180mm |
110-320 |
110 |
2660×2430×2800
|
28 |
(*Note: The above technical parameters of stone crusher just for your reference)
6.Stone Crushing machine and parts pictures
7. Our factory
8. Our services
Pre-sale services:
(1) device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program.
On-sale services :
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale services :
(1) free to assign a dedicated service personnel, arriving at the scene and guiding customers' installation and debugging .
(2) equipment installation.
(3) on-site training of operators.
(4) complete sets of equipment installed, 1-2 full-time technical staff(according to the machines you buy) to stay free of charge to help customers on-site production, to meet your satisfaction.
For more details, pls contact me freely.
Welcome to visit our factory, hope to meet with you expected or unexpected.
Jaw Crusher Machine is fit for dry and wet sieving, classification of powdery, granular and filamentary materials and dehydration of materials. If fine sieving is required Stone Crushing Line, Stone Crusher Machinery/ Jaw Crusher made in China can be satisfied by adopting high-efficiency screen mesh-cleaning device to improve the sieving. For wet sieving Stone Crushing Line, Stone Crusher Machinery/ Jaw Crusher made in China is especially fit for separation of sludge (waste water) and preliminary compression of mixed matter of solid and liquid materials.
hhhghj
Jaw Crusher Machine can do according to customers special demands. We provide our customers with high-quality Jaw Crusher Machine, advanced production technology and perfect after-sales services.Stone Crushing Line, Stone Crusher Machinery/ Jaw Crusher made in China Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
