Good material adapted products large measuring range jaw crusher machine

Product Description

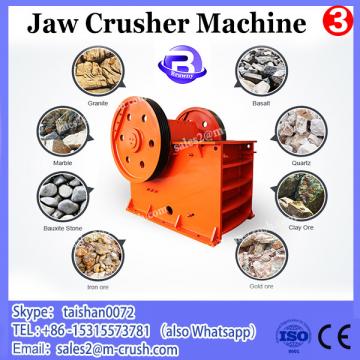

Jaw Crusher Equipment —Introduction

Jaw Crusher is mainly composed of stander, eccentric shaft, belt pulley, flywheel, movable jaw plate, wrist plate , adjustable gap screw, offsetting spring and fixed jaw plate. Jaw Crusher is suitable for primary and secondary crushing of all kinds of minerals and rocks, with the advantages of high abrasion resistance, high compression strength and long operating life.

Features

Jaw Crusher Equipment— Features

1. The broken cavity is deep and without dead area, which increases the feeding capacity and output.

2. High-manganese steel are used for liners;

3. The size reduction ratio is big.

4. High rotation speed of movable jaw and the arc jaw plate design increase production capacity.

5. Lubrication system of jaw crusher is safe and reliable.

6. The adjustment range of the outlet is big what improves the flexibility of equipment and also satisfies the requirements of different customers.

7. With low noise and less dust.

Application

Jaw Crusher Equipment— Application

Due to the features of simple structure, reliable performance, convenient maintenance and safe use, our jaw crusher of various models are widely used in the crushing operation in metallurgy, mining, building materials, chemical industries and cement enterprises.

Technology

Model	Size of inlet (mm)	Max feed particle size (mm)	Adjustable range of outlet (mm)	Capacity (t/h)
PE-150X250	150X250	125	10-40	1-3
PEX-150X500	150X500	120	10-40	6-28
PEX-150X750	150X750	120	10-40	8-35
PEX-150X1000	150X1000	120	10-40	22.5
PEX-200X1000	200X1000	160	10-40	12-50
PEX-200X1200	200X1200	160	10-40	15-60
PE-250X400	250X400	210	20-80	5-20
PEX-250X600	250X600	210	10-40	7-22
PEX-250X750	250X750	210	15-50	15-35
PEX-250X1000	250X1000	210	15-50	15-50
PEX-250X1200	250X1200	210	15-50	20-60
PE-400X600	400X600	350	40-100	25-64
PE-500×750	500×750	425	50-100	45-80
PE-600×900	600×900	500	65-160	70-120
PE-750×1060	750×1060	630	80-140	130-260
PE-900×1200	900×1200	750	95-165	220-380
PE-1000×1200	1000×1200	850	195-265	230-380
PE-1200×1500	1200×1500	1020	150-300	400-800
PEX-300×1300	300×1300	250	25-105	20-90

More Details

Company Information

Certifications

Packaging & Shipping

Contact UsDALIAN TEREN INDUSTRY INSTRUMENTS CO.,LTD
Tel 0086-0411-83897455
Mobile 0086-15542428832
Fax 0086-0411-86703696
Website teren instruments.en.Good material adapted products large measuring range jaw crusher machine.com
24Hrs Online Inquiry
SKYPE: dlteren2008

Jaw Crusher Machine is fit for dry and wet sieving, classification of powdery, granular and filamentary materials and dehydration of materials. If fine sieving is required Good material adapted products large measuring range jaw crusher machine can be satisfied by adopting high-efficiency screen mesh-cleaning device to improve the sieving. For wet sieving Good material adapted products large measuring range jaw crusher machine is especially fit for separation of sludge (waste water) and preliminary compression of mixed matter of solid and liquid materials.
hhhghj
Jaw Crusher Machine can do according to customers special demands. We provide our customers with high-quality Jaw Crusher Machine, advanced production technology and perfect after-sales services.Good material adapted products large measuring range jaw crusher machine Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
