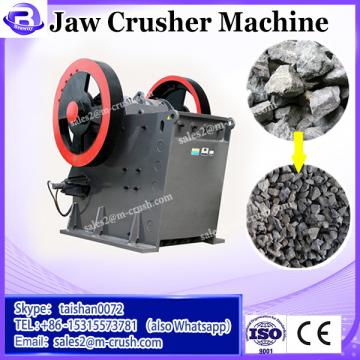

HSM ISO CE Granite PE250*400 High Efficiency Jaw Crusher Machine

Product Description

HSM ISO CE Granite PE250*400 High Efficiency Jaw Crusher Machine

Name	Jaw Crusher Machine
Model	PE250x400
Max Feeding sizes	210mm
Discharging sizes	20-80mm
Capacity	5-20t/h
Motor Power	15-18.5kw
Dimension	1108x1142x1392mm

Jaw Crusher Machine Application
Jaw Crusher Toggle Plate is widely used in many industrys including Mining, Construction, Quarry, Ore, Stone, Chemical Industry, Metallury, Building Materials, Highway, Road and so on.

Jaw Crusher Toggle Plate is suitable for the primary or secondary crush of large rock with compressive resistance not more than 320MPa.
PE Jaw Crusher is used for primary crushing, and PEX jaw crusher is used for secondary and fine crushing.

Jaw Crusher Machine Features

1. Simple structure, easy maintenance, stable function, low operation cost, great crushing ratio.
2. Deep crashing cavity, no unreachable corner in cavity, higher feeding capacity and productivity.
3. Great crushing ratio, homogeneous output size.
4. Discharging adjustment by shim, reliable and convenient, broad range of adjustment, more flexibility.
5. Safe and reliable lubrication system, easy change spare parts, less effort in maintenance.
6. Simple structure, reliable work, low cost in operation.
7. Less energy consumption: one machine can reduces 15%-30% energy consumption, and the whole system can reduces by a half.
8. Discharging sizes can adjustment to meets variable requirement of customers.
9. Low noise, little dust.

Jaw Crusher Machine Working Principle

The motor drives the belts and the belt wheels, and make the movable jaw up and down by the eccentric shaft. When the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, and the materials can be crushed; when the movable jaw rises, the angle between the fixed jaw and the movable jaw becomes bigger; and the movable jaw plate leaves from the fixed jaw by the function of the tension rod and the spring. And then the crushed materials are discharged from the lower outlet of the crushing cavity.

Jaw Crusher Machine Main Technical Parameter

Images and video

Our Advantages Of Jaw Crusher Machine

1. Jaw Plate and Side Plate

Jaw crusher have 1pc mobile jaw plate, 1pc fixed jaw plate, 2pcs side plate, when crushing material, this 4 parts directly touch and crush the raw material.

Our jaw plate and side plate is made of High Manganese steel Mn13Cr2, it is a high wear-resistance material, which can prolong the service life of the machine. In case of hard pebble stone, it can crusher 20000 tons stone.

2. Toggle Plate

The insurance switching board is made of special materials that break when it needs to be broken and do not break when it does not need to be broken.
3. Eccentric Shaft
Eccentric shaft after tempering is very durable.
Upgrading of large diameter shafts will be suitable for heavy duty crushing.

4.Casting Frame

Small and middle model jaw crusher adopt Heay-duty and thick durable design casting frame.

5.Welding Frame

Middle and big model jaw crusher adopt GB steel plate weld.

6. Main Shaft and Bearing

Main shaft through dynamic balance testing, our jaw crusher bearing is Swedish SKF bearing.

7.Spring

The high-strength spring adjusts the discharge size well.

8.Diesel Engine Jaw Crusher

Our machines are delivered with a chassis that can be fitted with motors or diesel engines.

9.Crushing Screener

The jaw crusher can be fitted with tires to facilitate the movement and installation of vibrating screens to obtain different desired dimensions.

Our Certifications

Our company has passed the international ISO9001-2008 auhentication,possessing the independent right to import and export within People's Requblic of China.The accumulation of fruitful technology and the application of new technology have enabled to acquire over 20 awards from country and industry. Jaw Crusher Machine

Our Company

Our Company

HSM ISO CE Granite PE250*400 High Efficiency Jaw Crusher Machine Huashengming Heavy Machinery Factory are mainly produce crushing and mining equipment.
We have 20 years experience.Our products got ISO CE BV SGS certificate. If your are interested in any of our machine,pls feel free to contact us. Jaw Crusher Machine
We will work with you to create a win-win situation, together to create the world famous brand of china.

Our Service

The management philosophy that we Huashengming always stick to is that technology is as important as quality,technology is base while quality is foundation.We guarantee the goods quality strictly and provide perfect pre-sale,sales tracking and after-sale services.

Pre-sale service

1.Selection of equipment model;
2.Design and manufacturing of equipment based on customers' particular requirement;
3.Technician training for customers;
4.To send engineer to customer's local place for site planning and workflow design.

Sales tracking

1.Product acceptance;

2.To help customer protocol construction scheme.

Jaw Crusher Machine

After-sale service

1.To send specialized after-sale service personnel for on-site installation and debugging;
2.Installation and debugging;
3.Operation staff training;
4.After the complete equipment finish installation,our technician will assist customer come into opetation smooth until works.

Packing and shipping

Packing

1.Rustproof and moisture proof before delivery.
2.Free fumigation plywood case for single machine,larger parts are wrapped by plastic sheeting.
3.Export standard container 20GP,40GP,40HQ,etc. for production line.
4.Other packaging according to your special requirement

Shipping

We usually accept EXW, FOB and CIF etc. terms.

1.By sea or by train. we have 20 years cooperate transport company. bestfreight, fast delivery.
2.Send B/L in 3-5 days after ship leaving.
3.will remind you before ship arrival.

FAQ

1. Q: Can I visit your factory?
A: Yes. Many domestic and overseas customers visited our factory every year.

2. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is 2 years(24 months), and we can supply spare parts also.

3. Q: Do you provide after-sales service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.

4. Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

5. Q: Do you provide producution flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for stone crushing plant and various ores beneficiation line.

6. Q: Can you test our sample raw material?
A: Yes. You can send your samples to us for testing and analysis.

7. Q: Have you made the whole stone crushing line?
A: Yes. We have made many large&small scale stone crushing line at home and abroad.
