Product Description

Specifications

1. Descriptions of impact crusher :


Impact Crusher is the world's widely used crusher, for mineral processing, chemical, cement, construction, refractories, ceramics, glass and other industrial sectors in the broken and broken bits for a variety of medium hardness materials. My company’s product of Crusher is a combination of domestic and foreign sand and gravel mining industry , the specific conditions developed, the latest generation of Impact Crusher. Their product’s size can be adjusted, broken standard variety. The family of devices can dealing with the material with the side length 500mm, not more than 350Mpa anti-pressure strength, is an ideal aggregate processing equipment in the senior road surface and hydropower building

5.Technical Parameters of impact crusher :

S model Spec. Feed Opening (mm) Max. Feed Size (mm) Capacity (t/h) Power (kW) Weight (t)
PFW1210 1150X960 570X990 250 70-120 90-110 15.0
PFW1214 1150X1400 570X1430 250 90-170 132-160 19.0
PFW1315 1300X1500 625X1530 300 180-270 160-200 25.0
PFW1318 1300X1800 625X1830 300 220-300 200-250 30.0

P model Spec. Feeding size (mm) Max. feeding size (mm) Capacity (t/h) Power (kW) Weight (t)
PFW1210 1150X960 1100X1030 400 90-160 90-110 17.0
PFW1214 1150X1400 1100X1430 500 130-200 132-160 22.0
PFW1315 1300X1500 1200X1530 600 180-320 160-200 29.0
PFW1318 1300X1800 1200X1830 700 240-400 200-250 34.0

Impact Rock Crusher is used for primary, secondary and fine crushing of all kinds of stones and rocks with compressive strength less than 350 MPa such as granite, marble, and limestone.impact hammer crusher,hot selling impact crusher is widely used for sand and rock production in the industry of roads, railways, reservoir, electricity power, building materials and so on.
JHDGFHVB

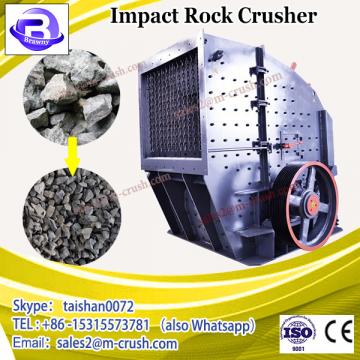

When the impact hammer crusher,hot selling impact crusher works, the motor drives the rotor to rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. Impact Rock Crusher And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. impact hammer crusher,hot selling impact crusher The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet.
JKKJBLK
