Product Description

Complete Stone Crushing Plant :

Aggregate plant includes vibrating feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor and centrally electric controlling system, etc. The designed capacity is from 30t/h to 1000t/h. To meet customer’s specific requirement, we can also add other equipments such as cone crusher, dust collector on the production line.

1 Shanghai Jianye manufactures and supplys various of coarse jaw crusher, fine jaw crusher,impact crusher, vibrating screen, vibrating feeder, belt conveyor .etc. They have a feature of advanced structure, reliable operation, high quality and easy in use.

2 Combining these machines, Shanghai Jianye can supply various complete plants to satisfy different quarry operation. It is also capable to provide the quarry design, facilities installation and regulation as a coordinated service process. There are two types of complete sets: stationary, and mobile with productive capacity from 30t/h-1000t/h.

3 The material size of end products can be set and graded with different customer needs.

The design of a stone crushing production line is usually decided by several factors:

1) raw materials to be crushed

2) The hardness, percentage of Si, moisture percentage of the raw materials

3) The average size of the raw materials before entering into the crushing system

4)Requested product sizes, percentage of the sizes, and their usage

5) hour capacity of the crushing line

Name

Capacity

Feeder

Primary crusher

Secondary crusher

Screen

Limestone

30-50

GZD300*90

PE400*600

PF1010

3YK1237

Limestone

50-80

ZSW380*96

PE500*750

PF1210

3YK1548

Limestone

80-120

ZSW380*96

PE600*900

PF1214

3YK1860

Limestone

120-200

ZSW490*110

PE750*1060

2*PF1214

3YK2160

Limestone

200-300

ZSW590*110

PE1000*1200

2*PF1315

3YK2460

Limestone

300-400

ZSW590*110

PE1000*1200

2*PF1315+2*PF1214

2*3YK2460

Limestone

400-500

ZSW590*110

PE1200*1500

2*PF1315+2*PF1315

2*3YK2460

Name

Capacity

Feeder

Primary crusher

Secondary crusher

Screen

Granite

30-50

GZD300*90

PE400*600

JYB900

3YK1237

Granite

50-80

ZSW380*96

PE500*750

PYFB0917

3YK1548

Granite

80-120

ZSW380*96

PE600*900

JY1160

3YK1860

Granite

120-200

ZSW490*110

PE750*1060

PYFB1321

3YK2160

Granite

200-300

ZSW590*110

PE900*1200

PYFB1626

3YK2460

Granite

300-400

ZSW590*110

PE1000*1200

PYFB1626+PYFB1321

2*3YK2460

Granite

400-500

ZSW590*110

PE1200*1500

PYFB1626+ PYFB1613

2*3YK2460

Note: the proposals are only for reference; the final proposal will be as per the requests of users.

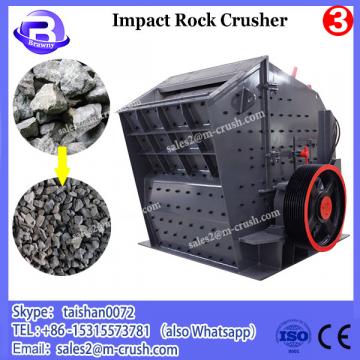

Impact Rock Crusher is used for primary, secondary and fine crushing of all kinds of stones and rocks with compressive strength less than 350 MPa such as granite, marble, and limestone.Construction waste crusher line is widely used for sand and rock production in the industry of roads, railways, reservoir, electricity power, building materials and so on.
JHDGFHVB
When the Construction waste crusher line works, the motor drives the rotor to rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. Impact Rock Crusher And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. Construction waste crusher line The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet.
JKKJBLK
