China Products Simple and reasonable structure vertical shaft impact crusher for sale
- Impact Rock Crusher
Impact Rock Crusher
- China
- ISO/CE, ISO9001:2008
- One set China Products Simple and reasonable structure vertical shaft impact crusher for sale
- [email protected]
- According to different model
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 147
- Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
Details Introduction
Features and technology advantages of VSI series Vertical Impact Crusher:
1.Simple and reasonable structure, low cost
2.High crushing ratio, energy saving
3.Fine crush and grind
4.Moisture content of raw material up to about 8%
5.Suitable for crushing hard material
6.Excellent shape of final product
7.Small abrasion, easy maintenance
8.Noise when working is below 75dB
Application of VSI series Vertical Impact Crushers:
1.River stone, mountain stone(limestone, basalt, granite, diabase, andesite.etc), Ore tailings, aggregate chips
2.Hydraulic and hydroelectric engineering, high-level road, highway and railway, passenger rail line, bridge, airport runway, municipal projects, sand making and rock reshaping
3.Building aggregate, highway road fabrics, cushion material, asphalt concrete and cement concrete aggregate.
4.Crushing progress before grinding in mining field. The crushing of building material, metallurgy, chemical industry, mining, fireproofing, cement, abrasive, etc.
5.Breaking of high abrasive and secondary disintegration, sulfur in thermal power and metallurgy industry, environmental projects such as slag, construction waste crushing
6.Manufacturing of glass, quartz sand and other high purity material
Working principle of VSI series vertical shaft impact crusher for sales:
The materials fall into impeller with high-speed rotation vertically. On the force of high-speed centrifugal, the materials strike to the other part of material in a high speed. After mutual impacting, the materials will strike and rub between the impeller and the casing and then be discharged straight from the lower portion to form a closed multiple cycles. Final product is controlled by screening equipment to meet the requirement.
The VSI series vertical impact crushers has two types: rock-on-rock and rock-on-iron. Rock-on rock is to process abrasive material and rock-on –iron is to process normal material. The production of rock-on-iron is 10-20% higher than rock-on-rock.
Technical Data
Model |
Max Feed Size(mm) |
Speed of Rotor(r/min) |
Capacity(t/h) |
Motor Power(kw) |
Dimensions(L×W×H)(mm) |
Weight(kg) |
VSI-3000 |
45(70) |
1700-2000 |
30-60 |
75-90 |
3080×1716×2126 |
≤5310 |
VSI-4000 |
55(70) |
1400-1620 |
50-90 |
110-150 |
4100×1916×2166 |
≤7840 |
VSI-5000 |
65(80) |
1330-1530 |
80-150 |
180-220 |
4300×2215×2427 |
≤11200 |
VSI-6000 |
70(100) |
1200-1400 |
120-250 |
264-320 |
5300×2728×2773 |
≤14590 |
VSI-7000 |
70(100) |
1000-1200 |
180-350 |
320-400 |
5300×2728×2863 |
≤16580 |
VSI-8000 |
80(150) |
1000-1100 |
250-380 |
400-440 |
6000×3000×3420 |
≤23450 |
VSI-9000 |
80(150) |
1000-1100 |
380-600 |
440-630 |
6000×3022×3425 |
≤23980 |
Impact Rock Crusher is used for primary, secondary and fine crushing of all kinds of stones and rocks with compressive strength less than 350 MPa such as granite, marble, and limestone.China Products Simple and reasonable structure vertical shaft impact crusher for sale is widely used for sand and rock production in the industry of roads, railways, reservoir, electricity power, building materials and so on.
JHDGFHVB

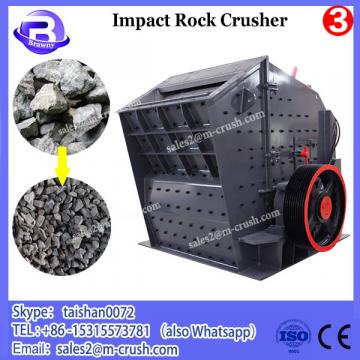

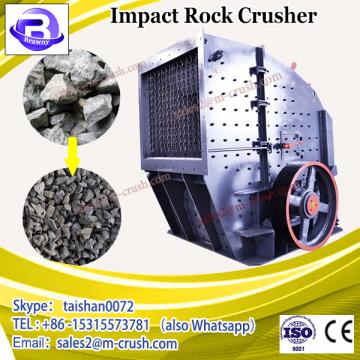

When the China Products Simple and reasonable structure vertical shaft impact crusher for sale works, the motor drives the rotor to rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. Impact Rock Crusher And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. China Products Simple and reasonable structure vertical shaft impact crusher for sale The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet.
