Home>Products>Impact Rock Crusher>AC Motor Motor Type and Crusher Type china famous impact crusher

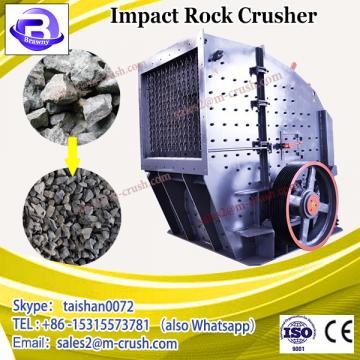

AC Motor Motor Type and Crusher Type china famous impact crusher
- Impact Rock Crusher
Impact Rock Crusher
- China
- ISO9001:2008
- One set AC Motor Motor Type and Crusher Type china famous impact crusher
- [email protected]
- 2400*1560*2660mm-2870*3350*3090mm
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 137
- Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
AC Motor Motor Type and Crusher Type china famous impact crusher
AC Motor Motor Type and Crusher Type china famous impact crusher is used for primary, secondary and fine crushing of all kinds of stones and rocks with compressive strength less than 350 MPa such as granite, marble, and limestone. The Impact Crusher is widely used for sand and rock production in the industry of roads, railways, reservoir, electricity power, building materials and so on.
Features of AC Motor Motor Type and Crusher Type china famous impact crusher
1. Cubic-shaped end products;
2. Adjustable end products sizes, simple crushing process;
3. The board hammer is made of high chrome and, abrasion-resistant, and with powerful impacting force;
4. Non-key connected, easy to maintain, cost-saving;
5. Sound construction and high efficiency.
Working Principle of AC Motor Motor Type and Crusher Type china famous impact crusher
The materials are crushed via impact energy produced in the impact crusher. When the materials enter the zone of the board hammer, they are flung into the impact equipments via the high-speed impact of the board hammer. These materials will be re-crushed after rebounding into the scale board. The large materials are crushed into small pieces until it becomes the specified granularities. The end products come out from the base of the impact crusher.
Technical data of AC Motor Motor Type and Crusher Type china famous impact crusher
Model | Rotor Size (mm) | Feed Opening Size (mm) | Max. Feeding Size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) | Overall Dimension (mm) |
PF-1007 | ø1000×700 | 400×730 | 250 | 15-50 | 37-55 | 9.5 | 2400×1560×2660 |
PF-1010 | ø1000×1050 | 400×1080 | 300 | 50-80 | 55-75 | 13.2 | 2440×2250×2630 |
PF-1210 | ø1250×1050 | 400×1080 | 300 | 70-130 | 110-132 | 16.5 | 2700×2340×2870 |
PF-1214 | ø1250×1400 | 400×1430 | 300 | 90-180 | 132-160 | 19.5 | 2700×2695×2900 |
PF-1315 | ø1320×1500 | 860×1520 | 350 | 120-250 | 180-260 | 24.8 | 2860×2800×3050 |
PF-1320 | ø1320×2000 | 860×2030 | 500 | 160-350 | 300-375 | 30 | 2870×3350×3090 |
Packaging & Shipping Our Services
Pre-sale services,we do
Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investments;
1. Select equipment model;
2.Sdeign and manufacture products according to clients' special requirement;
3. Train technical personnel for clients.
Services during the sale,we do
Respect clients; devote ourselves to improving the total value of clients.
1. Pre-check and accept products ahead of delivery;
2. help clients to draft solution.
After-sales service,we do
Provide considerate services to minimize clients' worries.
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators on site;
4. Examine the equipment regularly;
5. Take initiative to eliminate the troubles rapidly at site;
6. Distribute the guarantee fittings door-to-door;
7.provide perfect service;
8. Provide technical exchanging;
9. Provide maintenance for big items.
Shanghai Joyal Machinery Co., Ltd is a high-tech enterprise, which is specializing in the research, development, and manufacture of industrial stone crushing & screening equipments, grinding mills, mining equipments and so on. Our company has already formed a full set of modern production line, equipped with intelligent and standardized testing, controlling laboratories, and owned a professional team of R & D, production, sales and service.
Certificates & Honor
Impact Rock Crusher is used for primary, secondary and fine crushing of all kinds of stones and rocks with compressive strength less than 350 MPa such as granite, marble, and limestone.AC Motor Motor Type and Crusher Type china famous impact crusher is widely used for sand and rock production in the industry of roads, railways, reservoir, electricity power, building materials and so on.
JHDGFHVB
When the AC Motor Motor Type and Crusher Type china famous impact crusher works, the motor drives the rotor to rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. Impact Rock Crusher And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. AC Motor Motor Type and Crusher Type china famous impact crusher The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet.
JKKJBLK
